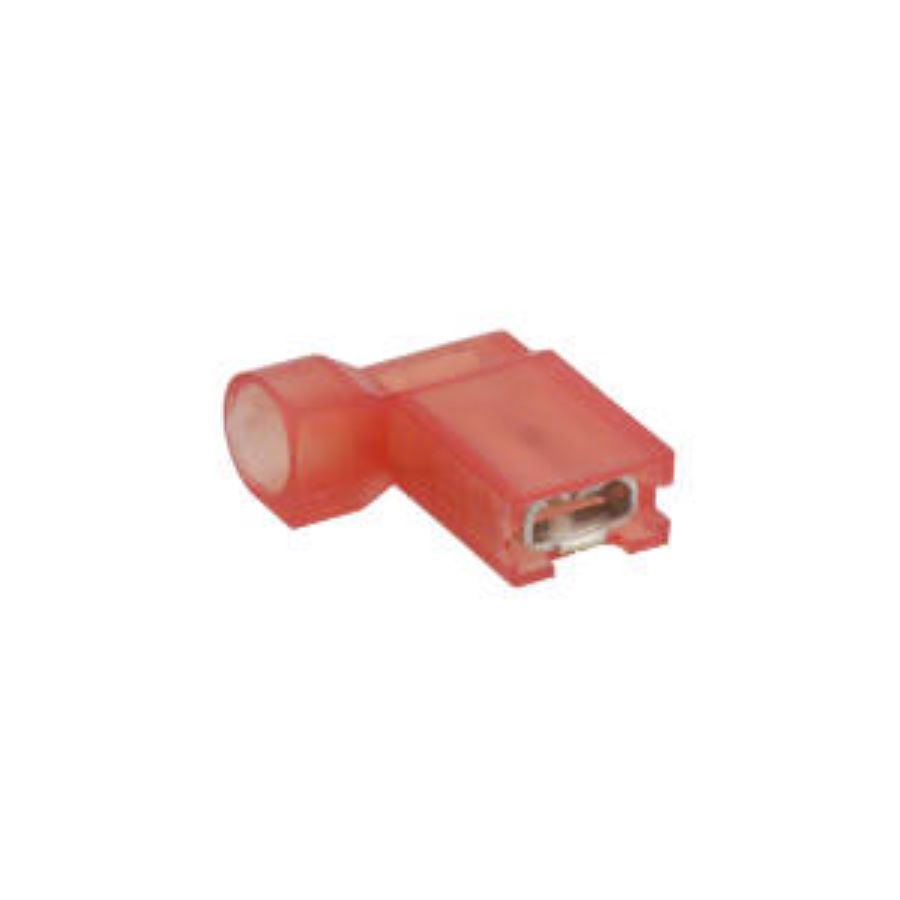

2-520334-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2-520334-2
Datasheet:
Description:
Terminals Free Hanging 22 AWG Female
| Parameter | Value |
|---|---|
| Length | 13.081 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 13.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Flammability Rating | UL94 V-2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Red |
| Gender | Female |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Wire/Cable Diameter | 4.19 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 22 AWG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 4.19 mm |
| Body Plating | Tin |
| Contact Gender | Female |
| Insulated Wire Support | Yes |
| Mating Tab Width | 4.75 mm |
| Tab Length | |
| Tab Thickness | 508 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 4.75 mm x 0.51 mm |
Stock: 6798
Distributors
pcbx
pcbxUnit Price$0.90344
Ext.Price$0.90344
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.90344 | $0.90344 |
| 10 | $0.45172 | $4.51720 |
| 50 | $0.34748 | $17.37400 |
| 100 | $0.26729 | $26.72900 |
| 500 | $0.20561 | $102.80500 |
| 1000 | $0.15816 | $158.16000 |
| 3000 | $0.14778 | $443.34000 |
| 5000 | $0.13808 | $690.40000 |
| 10000 | $0.12901 | $1290.10000 |
| 30000 | $0.12054 | $3616.20000 |
